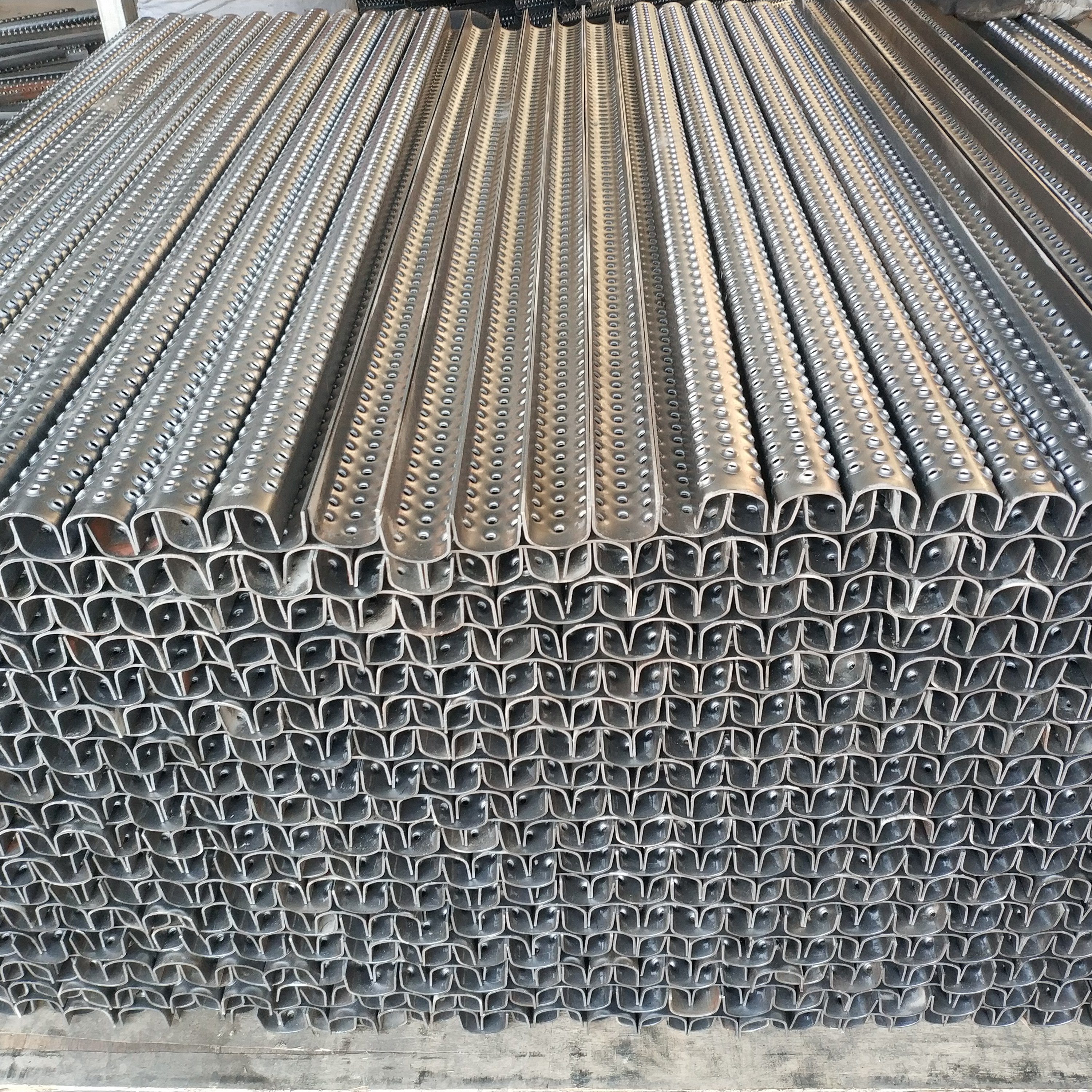

Antiskid Ladder rungs

-Product: Antiskid ladder rungs

-Modle: HJS-04

-Materials: carbon steel, stainless steel, aluminum5052, galvanized

-Specification: 2 rows, 3rows and 4 rows.

-Size: 60” or 48.75”

-Type: walkway, stair treads

-Customized and free sample is workable

Product Detail

two holes ladder rung, three holes ladder rungs and four holes ladder rungs.

Common data is as following

Common size: 48-3/4’’, 60 lengths

Pre-galvanized or HRP&O steel, 13 and 11 gauge

.125’’ aluminum

16 gauge 304 SS

Allowable safe load shown are concentrated at center of span on simple beam

2 holes ladder rungs

material	safe allowable concentrated load(lb.)				weight lb./ln.ft
	16”span	18”span	20”span	24”span
11ga steel	664	590	531	443	1.5
13ga steel	508	451	401	338	1.1
.125” aluminum	471	418	377	314	0.5
16ga stainless steel	345	306	276	230	0.8

3holes ladder rungs

material	safe allowable concentrated load(lb.)				weight lb./ln.ft
	16”span	18”span	20”span	24”span
11ga steel	474	422	379	316	1.2
13ga steel	375	334	300	250	0.9
.125 aluminum	337	299	263	224	0.5
16ga stainless steel	260	231	208	*	0.7

4 holes ladder rungs

material	safe allowable concentrated load(lb.)				weight lb./ln.ft
	16”span	18”span	20”span	24”span
11ga steel	1138	1012	911	759	1.9
13ga	862	766	689	574	1.4
.125alumium	810	720	649	540	0.7
16ga steel	580	516	464	387	1..1
